Modular component & picking bin
Part BinsPT0019Modular component & picking bin
PT0019 / Part Bins
Front-Open Part Bin PT0019
Modular component & picking bin
Stackable front-hopper bin designed for high-density small-parts storage, fast assembly picking and lean inventory organisation. Wide hopper gives instant visibility and hand access while stacked.
95 × 102 × 51 mmModular component & picking binPart Bins
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- PT0019
- Outer Dimensions (OD)
- 95 × 102 × 51 mm
- Effective Height
- 24 mm
- Colour Options
- Blue, Grey, Customization available
- Mounting
- Interlock stacking · louvre-panel mount
- Material Grade
- High-impact polypropylene (PP)
- Operating Temperature
- -20°C to +70°C continuous service
- Compliance
- RoHS compliant · 100% recyclable
Effective stacking height refers to the usable front-open height once bins are interlocked in a vertical stack. For louvre-panel mounting, share your panel pitch and bin depth with our team so we can confirm the rear-geometry fit for your layout.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of Front-Open Part Bin PT0019.
- 01Wide front hopper for quick picking
- 02Interlocking stack / panel mount
- 03Reinforced labels & divider slots
- 04High-impact engineered polypropylene
- Interlock stacking and louvre-panel mounting geometry verified
- High-impact PP trialled for repeated handling and drops
- Wide hopper access validated for ergonomic pick rates
- Colour-stable, UV-stabilised moulding compound
- RoHS-compliant and 100% recyclable polymer
About the Product
About Front-Open Part Bin PT0019 — Injection Moulded Plastic Components.

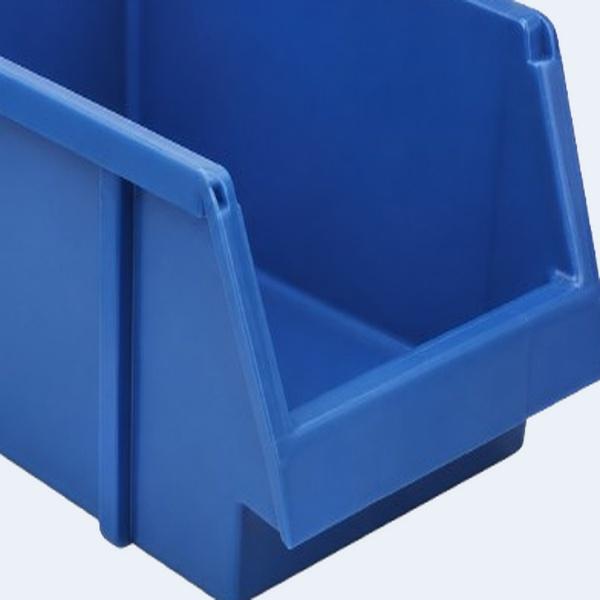

Front-Open Part Bin PT0019 (PT0019) is a 95 × 102 × 51 mm stackable front-open part bin engineered for modular small-parts storage and fast assembly picking, with an effective stacking height of 24 mm. The wide hopper opening gives operators instant content visibility and hand access, cutting pick time in high-density kitting layouts.
Produced from high-impact engineered polypropylene, the bin interconnects vertically and mounts to standard louvre panels, letting facilities build scalable storage walls around live workstations. Colour-coded Blue, Grey, Customization available variants support quick SKU identification across service stations, electrical workshops and warehouse order-picking lines.
