Industrial plastic pallet
HDPE/PPPT0005Industrial plastic pallet
PT0005 / Plastic Pallets

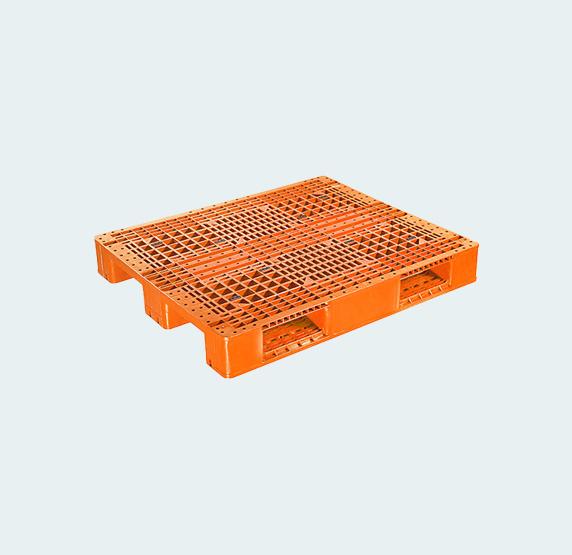

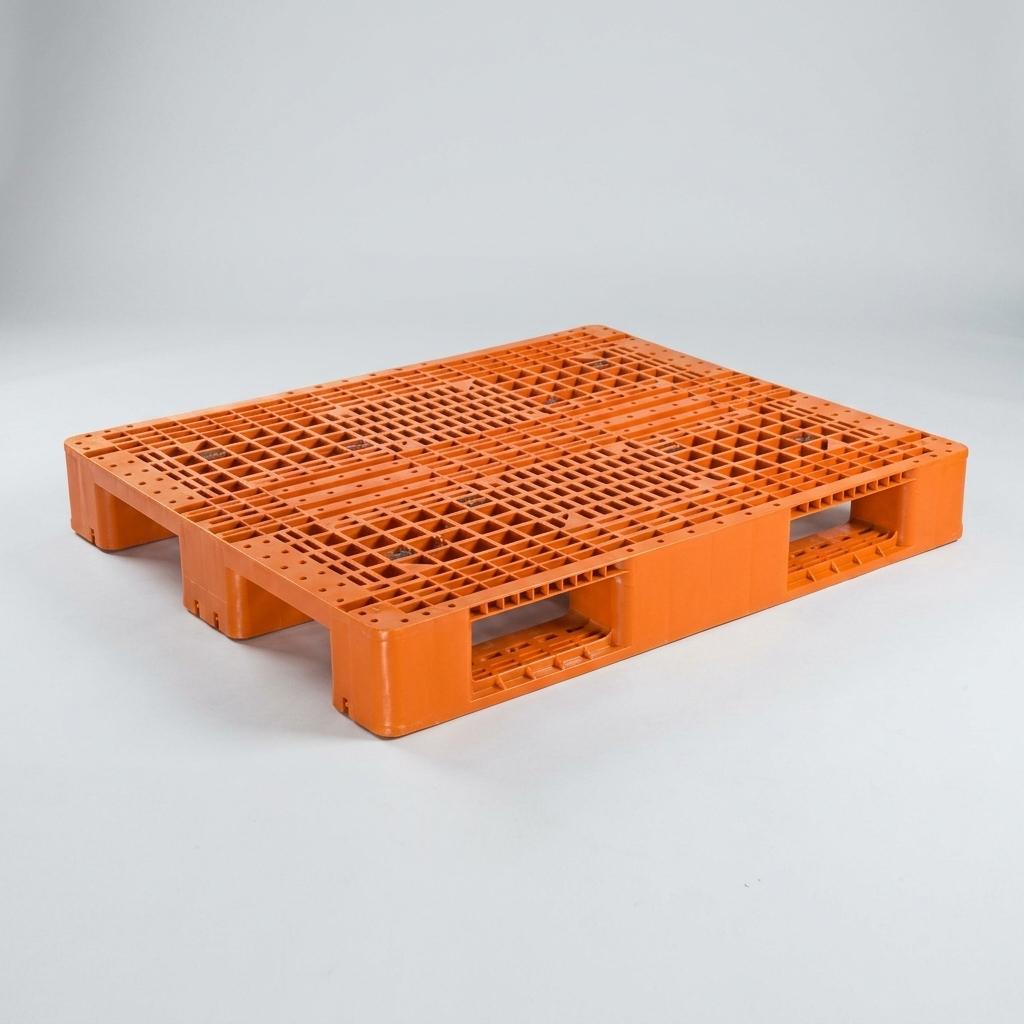

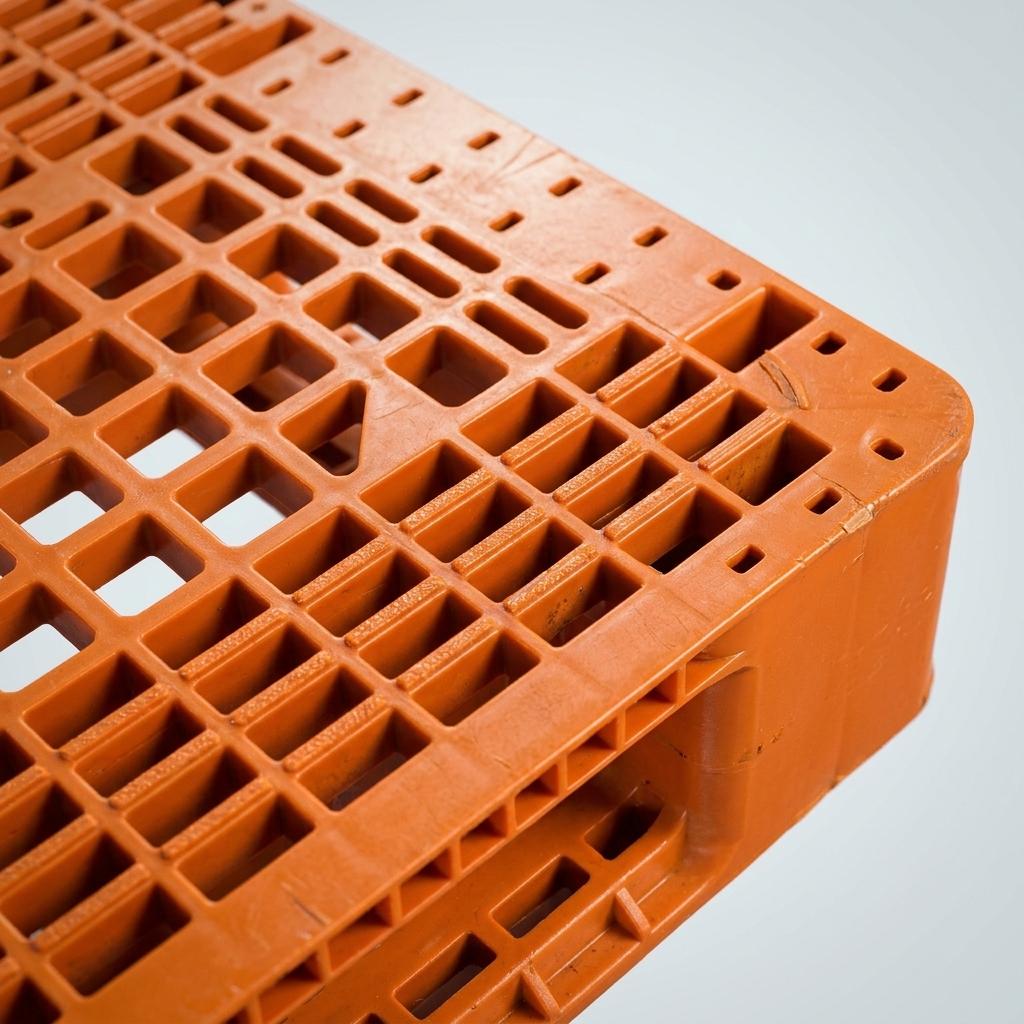

Medium Duty Mesh Pallet
Industrial plastic pallet
Injection-moulded plastic pallet engineered for demanding warehouse racking, internal logistics and export transit duty. Fully recyclable, dimensionally consistent and resistant to moisture, chemicals and pests.
1200 × 1000 × 150 mmHDPE/PPPlastic Pallets
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- PT0005
- Dimensions
- 1200 × 1000 × 150 mm
- Static Capacity
- 4000 kg Unified Load
- Dynamic Capacity
- Up to 800 kg Unified Load
- Racking Capacity
- Up to 700 kg Unified Load
- Material
- HDPE/PP
- Colour Options
- Blue, Grey, Green
- Fork Access
- 4-way forklift & pallet-jack entry
- Operating Temperature
- -20°C to +60°C (HDPE) · up to +110°C (PP)
- Export Compliance
- ISPM-15 exempt · no fumigation
- Test Standard
- ISO 8611 load tested
All load figures are stated under uniform load distribution at standard ambient conditions, verified to ISO 8611 test protocols. Capacity is derated at temperature extremes and for point-loading — confirm your duty cycle, cold-store temperature and racking span with our engineering team before specification.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of Medium Duty Mesh Pallet.
- 01100% virgin food-contact grade polymer
- 02Uniform-load static capacity up to 6000 kg
- 034-way forklift & pallet-jack entry
- 04Non-absorbent, hygienic & pest-proof deck
- 05UV-stabilised for indoor and outdoor use
- Load-rated to ISO 8611 static, dynamic and racking test protocols
- Deflection checked within span limits on production racking rigs
- ISPM-15 exempt — no fumigation or heat treatment for export
- UV-stabilised polymer for outdoor yard and cold-store duty
- 100% recyclable; food-contact grades available on request
About the Product
About Medium Duty Mesh Pallet — Injection Moulded Plastic Components.
Medium Duty Mesh Pallet (PT0005) is a 1200 × 1000 × 150 mm injection-moulded plastic pallet manufactured by Pixelplast for warehouse racking, internal logistics and export transport duty. The platform carries 4000 kg Unified Load and supports Up to 800 kg Unified Load of dynamic load through normal forklift and pallet-jack operations, with cross-racking performance rated at Up to 700 kg Unified Load.
Moulded from HDPE/PP, every Medium Duty Mesh Pallet delivers a non-absorbent, pest-proof and moisture-resistant deck that stays dimensionally consistent through washdown and cold-chain cycles. Supplied in Blue, Grey, Green with custom branding available on volume orders, it offers a durable, fully recyclable alternative to wooden pallets for food, automotive, pharmacy and automated warehouse environments.
Project Review
Discuss Your Plastic Pall Requirement.
Share your target volumes, operating environment and drawings. Our team as a plastic injection moulding company will confirm tooling, cycle times and a formal quotation for Medium Duty Mesh Pallet.
