High-speed precision winding spool
ABS and PPSpool 05High-speed precision winding spool
Spool 05 / Plastic Spools

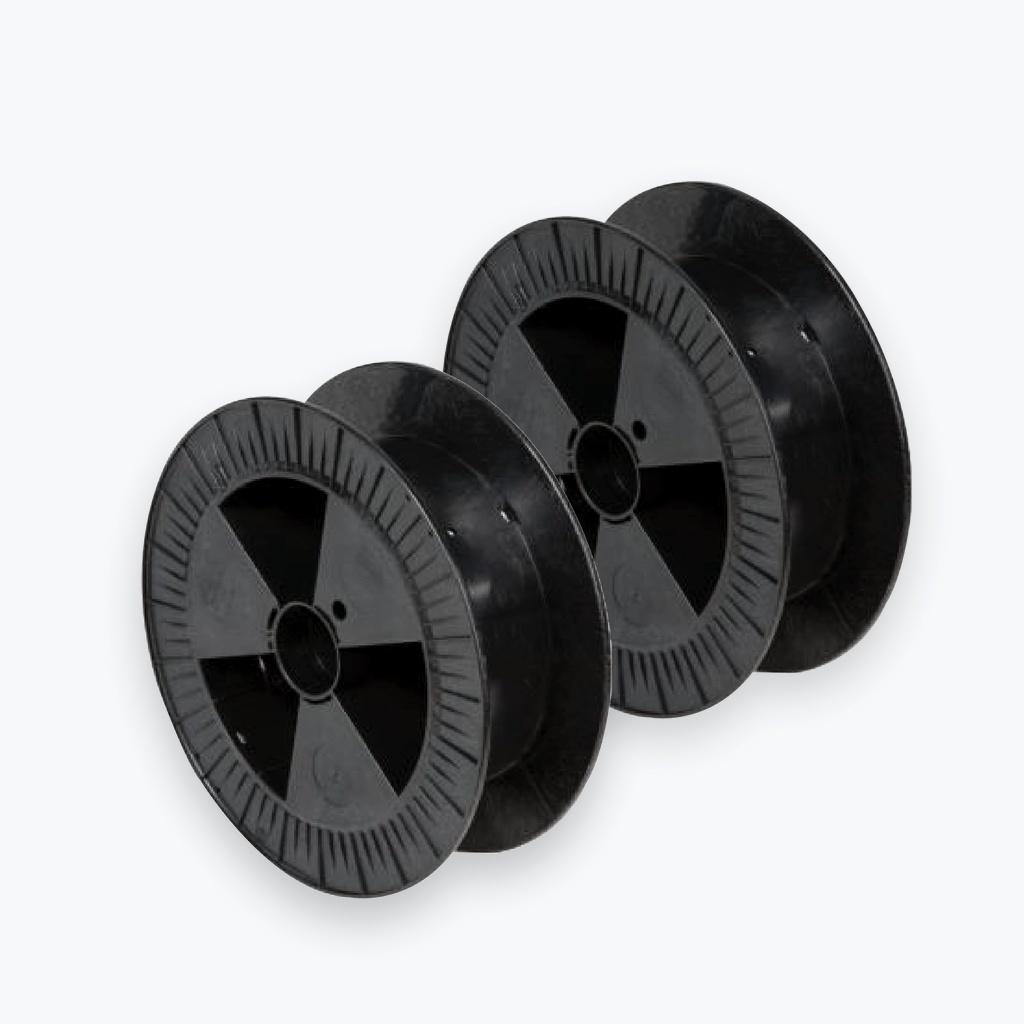

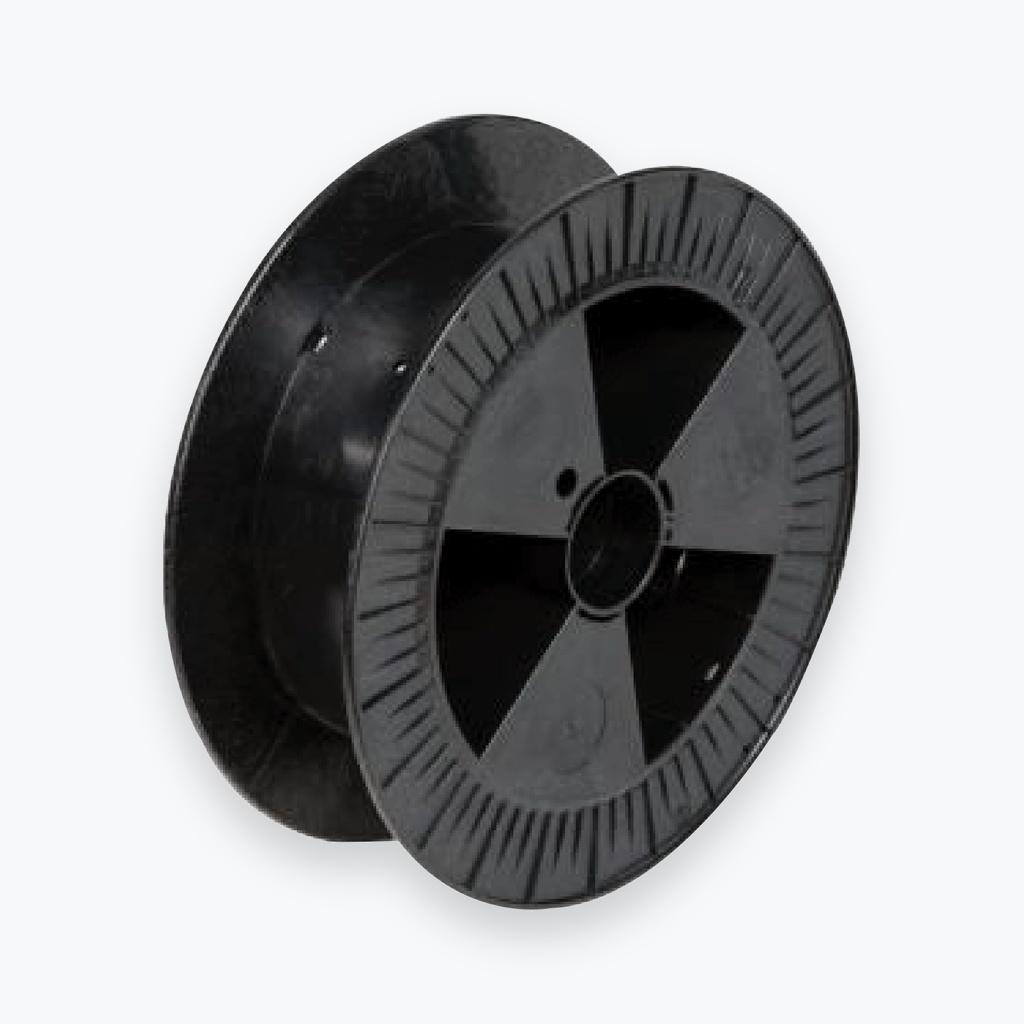

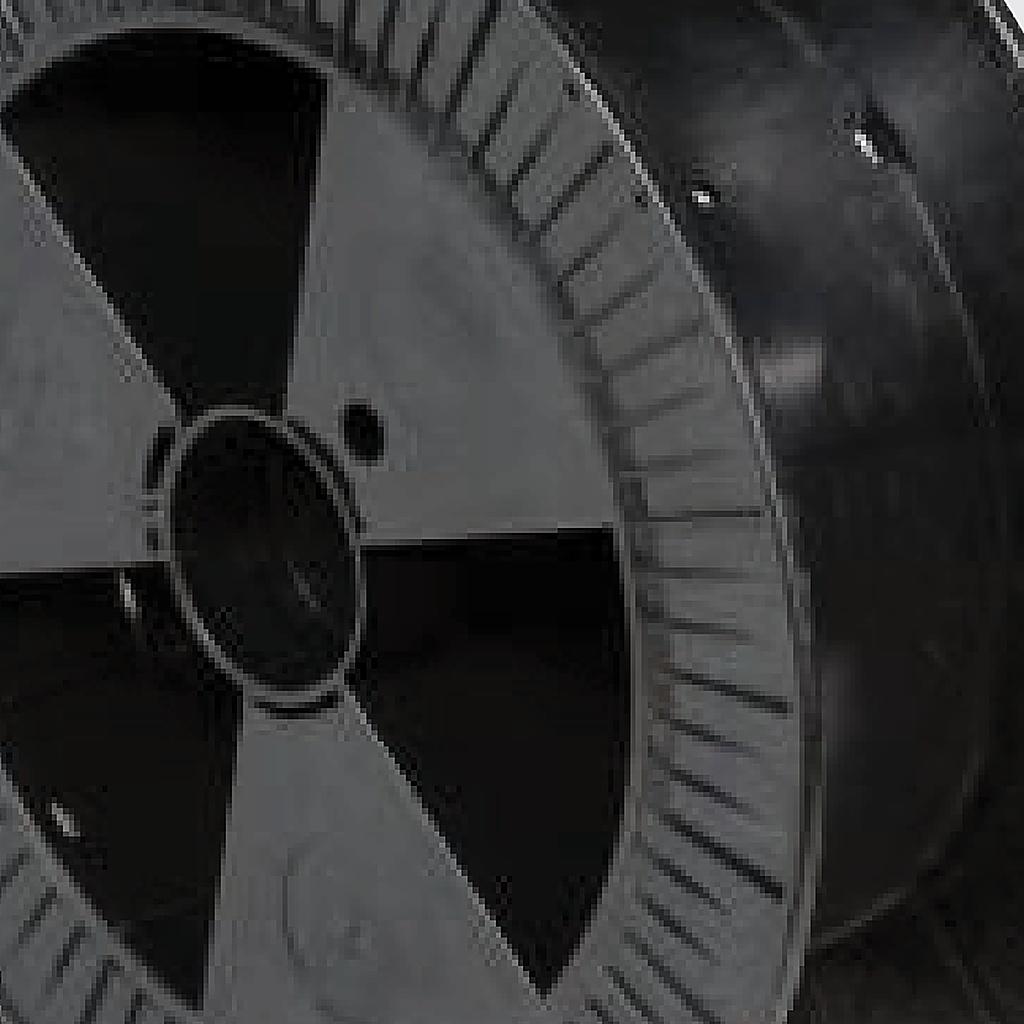

Tri-Window High-Capacity Spool 350×211 mm
High-speed precision winding spool
High-performance plastic spool manufactured for continuous high-speed winding of wire, cable, optical fibre, 3D filament and monofilament. Dynamic rotational balance and distortion-resistant flanges.
350 × 211 × 200 mmABS and PPPlastic Spools
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- Spool 05
- Dimensions
- 350 × 211 × 200 mm
- Materials
- ABS and PP
- Material Grade
- High-impact ABS / engineered PP
- Winding Duty
- High-speed continuous take-up
- Dimension
- Flange deflection & bore checks per unit
- Export
- Dimensionally stable · recyclable
All spools pass individual flange deflection and bore concentricity inspection before dispatch. For high-tension or ultra-fine conductor lines, share your winding speed, flange diameter and traverse with our engineers so we can confirm the correct barrel geometry for your process.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of Tri-Window High-Capacity Spool 350×211 mm.
- 01High-speed rotational balance
- 02Rib-reinforced distortion-resistant flanges
- 03Snag-free payoff geometry
- 04High-impact ABS / engineered PP
- Flange deflection and bore concentricity checked on every unit
- Dynamic balance verified for high-RPM winding heads
- Virgin ABS / engineered PP per material specification
- Snag-free payoff geometry validated on customer winders
- Dimensionally stable, low-inertia and recyclable at end of life
About the Product
About Tri-Window High-Capacity Spool 350×211 mm — Injection Moulded Plastic Components.
Tri-Window High-Capacity Spool 350×211 mm (Spool 05) is a precision 350 × 211 × 200 mm plastic spool manufactured for continuous high-speed winding of wire, cable, optical fibre, 3D printing filament and industrial monofilament. Rib-reinforced flanges resist distortion under tension, and the bore geometry delivers accurate take-up and snag-free payoff.
Produced from ABS and PP, the spool combines low inertia with a smooth, non-marring payoff surface to protect conductor insulation and delivered product quality. Every unit is checked for flange deflection and bore concentricity, making it dependable across copper and aluminium wire lines, telecom cable extrusion and automated winding floors.
Project Review
Discuss Your Plastic Spoo Requirement.
Share your target volumes, operating environment and drawings. Our team as a plastic injection moulding company will confirm tooling, cycle times and a formal quotation for Tri-Window High-Capacity Spool 350×211 mm.
