Tamper-evident logistics tote
Tote BinsPT0022Tamper-evident logistics tote
PT0022 / Tote Bins
Attached-Lid Tote PT0022
Tamper-evident logistics tote
Reusable injection-moulded tote container with interlocking attached lid. Protects goods in transit, stacks securely when closed and nests to save up to 70% return-freight volume.
604 × 400 × 255 mmTamper-evident logistics toteTote Bins
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- PT0022
- Outer Dimensions (OD)
- 604 × 400 × 255 mm
- Inner Dimensions (ID)
- 552 × 364 × 250 mm
- Versions / Base
- SCL / BB / FB (Standard Attached Lid)
- Colour Options
- Blue, Grey, Customization available
- Nesting Savings
- Up to 70% return-freight volume
- Sealing
- Tamper-evident zip-seal points
- Operating Temperature
- -20°C to +65°C continuous service
- Compliance
- Food-contact · FDA 21 CFR 177 & EU 10/2011
Nesting savings are measured across a standard loaded/empty return cycle. For automated conveyor or ASRS routing, share transfer speeds and merge angles with our engineering team so we can confirm base-rider and pocket compatibility for your line.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of Attached-Lid Tote PT0022.

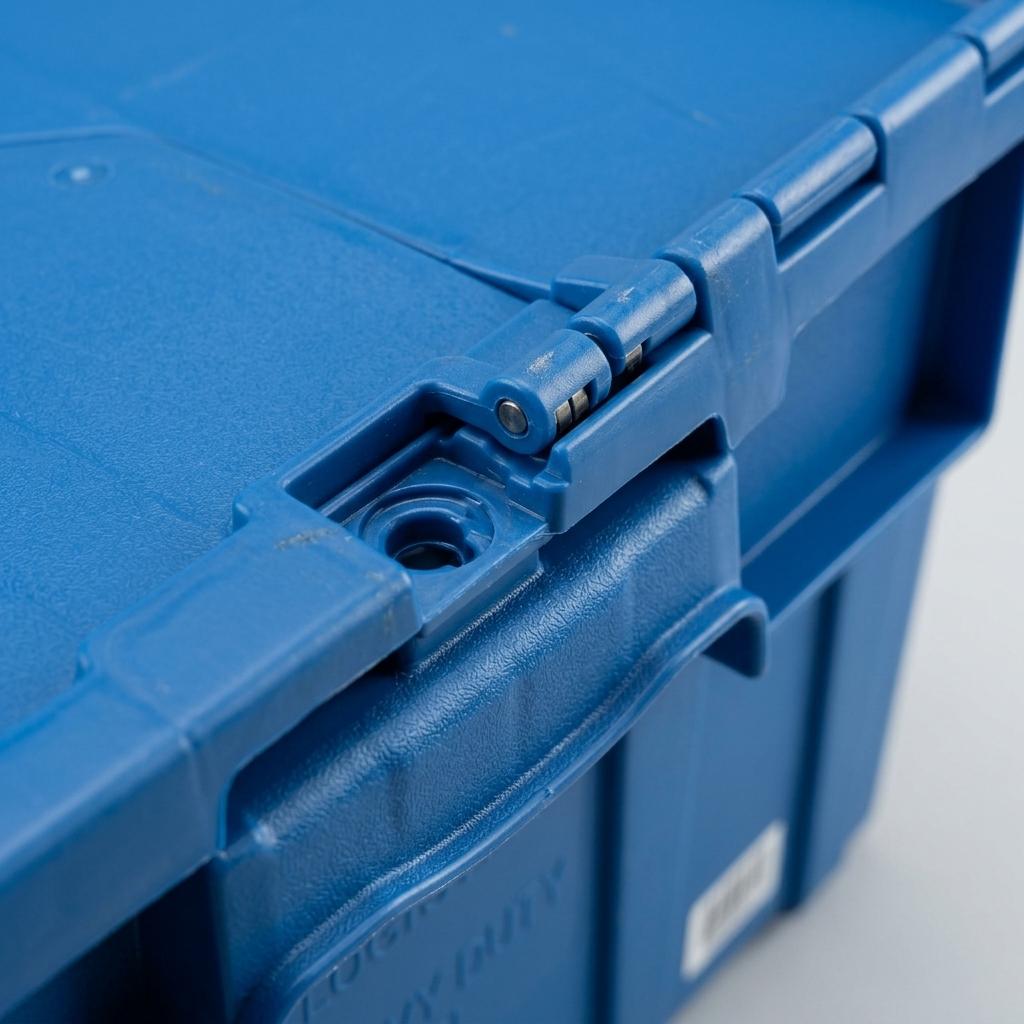

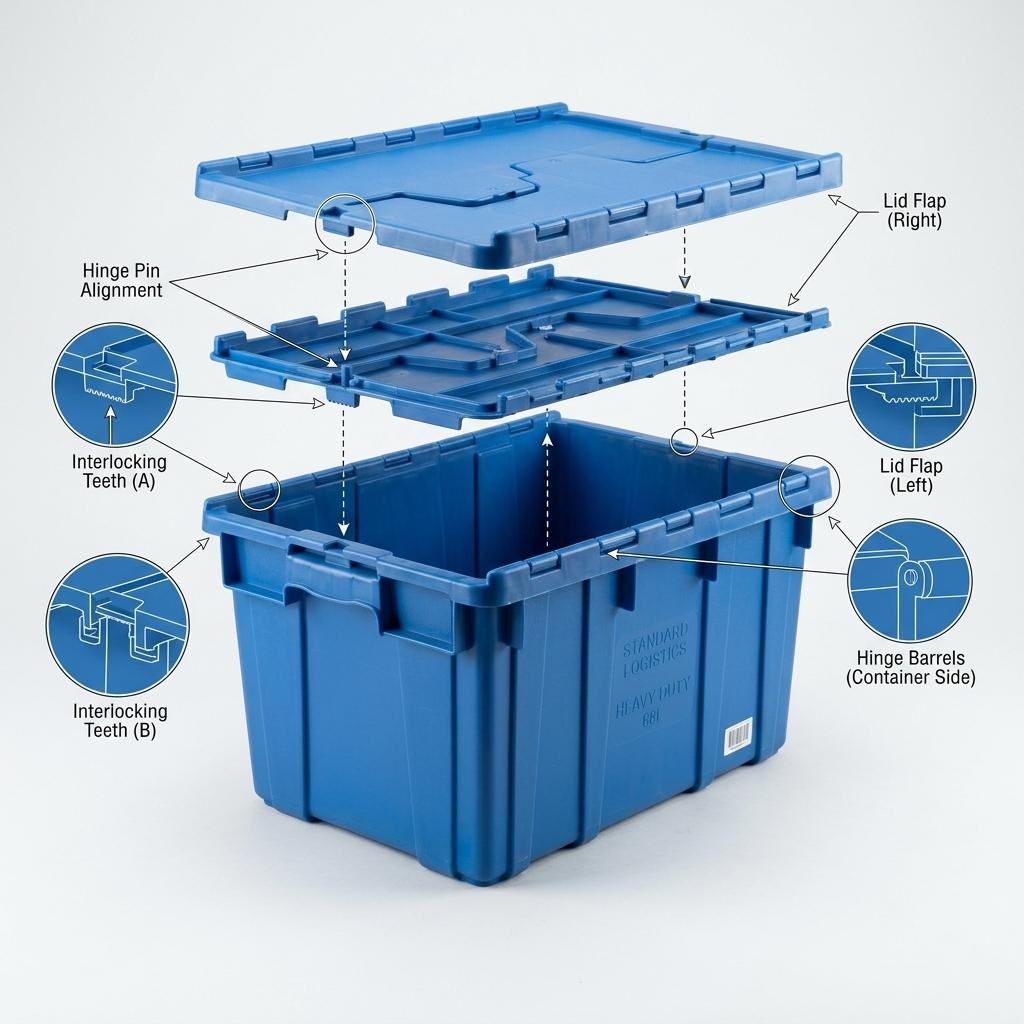

- 01Interlocking tamper-evident attached lid
- 02Textured base for conveyor movement
- 03Security tie-down slots for zip seals
- 04Space-efficient nesting when empty
- Attached-lid sealing verified for tamper-evident transit
- Conveyor-friendly base tested on belt and roller lines
- Nesting validated to free up to 70% return-freight volume
- Food-contact compound per FDA 21 CFR 177 and EU 10/2011
- Dimensionally stable through cold-chain and washdown cycles
About the Product
About Attached-Lid Tote PT0022 — Injection Moulded Plastic Components.
Attached-Lid Tote PT0022 (PT0022) is a reusable 604 × 400 × 255 mm attached-lid plastic tote with a usable cavity of 552 × 364 × 250 mm, provided in the SCL / BB / FB (Standard Attached Lid) configuration. The interlocking lid secures contents through transit and automated conveyor routing, while the container nests when empty to cut return-freight volume.
Built from virgin, food-contact grade polymer, this tamper-evident tote features a textured base for smooth conveyor travel and integrated tie-down slots for zip-seal security. Available in Blue, Grey, Customization available, it is specified for pharmaceutical cold-chain, e-commerce fulfilment and closed-loop retail supply chains that demand reusable, hygienic returnable packaging.
Project Review
Discuss Your Tote Bins Requirement.
Share your target volumes, operating environment and drawings. Our team as a plastic injection moulding company will confirm tooling, cycle times and a formal quotation for Attached-Lid Tote PT0022.
