PT0010 / Plastic Crates
650×450 Jumbo Crate
Heavy-duty storage & distribution crate
Rigid side-perforated jumbo crate engineered for heavy industrial storage and handling. Reinforced ribbed base, ergonomic hand grips and anti-skid stacking keep loads stable through picking, transit and racking cycles.
650 × 450 × 210 mmHeavy-duty storage & distribution cratePlastic Crates
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- PT0010
- Outer Dimensions (OD)
- 650 × 450 × 210 mm
- Inner Dimensions (ID)
- 610 × 410 × 200 mm
- Versions / Base
- SSP / RB (Side Perforated / Ribbed Base)
- Colour Options
- Blue, Grey, Customization Available
- Material Grade
- Food-contact grade PP / HDPE
- Operating Temperature
- -20°C to +65°C continuous service
- Nesting
- Nests when empty · stacks when loaded
- Compliance
- FDA 21 CFR 177 · fully recyclable
Dimensions shown are nominal external (OD) and internal (ID) measurements taken from production tooling. Nesting and stacking performance assumes loaded crates of equal geometry are stacked squarely; wet or dust-laden duty suits the ribbed-base (RB) and solid (SCH/FB) variants.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of 650×450 Jumbo Crate.
- 01Reinforced ribbed base construction
- 02Ergonomic side hand-grips
- 03Tight nesting when empty
- 04Secure stacking when in use
- 05Food-grade, UV-resistant material
- Single-piece injection moulding with rib-reinforced base
- Nesting and stacking geometry verified on production tooling
- Food-contact grade PP/HDPE compliant with FDA 21 CFR 177
- Impact and chemical resistance tested under shopfloor use
- UV-stabilised compound; fully recyclable at end of life
About the Product
About 650×450 Jumbo Crate — Injection Moulded Plastic Components.

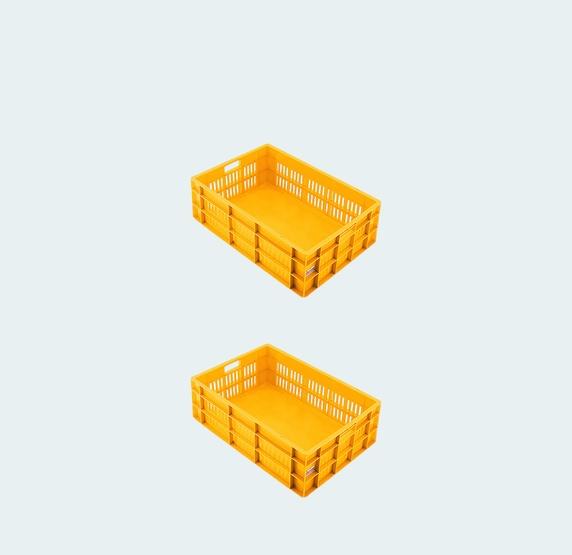

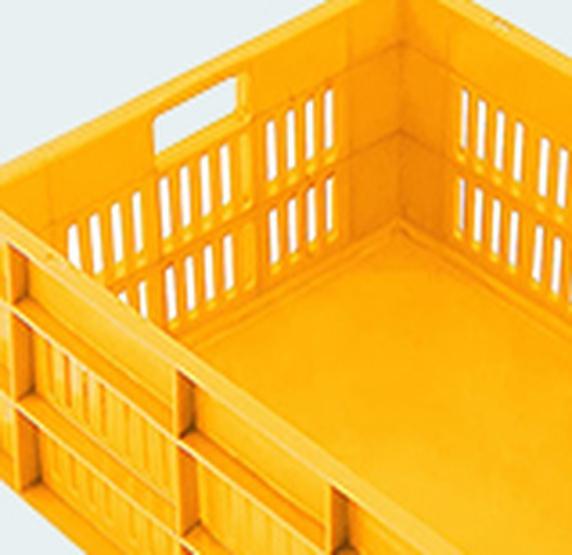

650×450 Jumbo Crate (PT0010) is a 650 × 450 × 210 mm plastic storage and distribution crate with a usable inner cavity of 610 × 410 × 200 mm, supplied in the SSP / RB (Side Perforated / Ribbed Base) configuration. Reinforced ribbed construction and an impact-resistant polymer body protect contents through picking, transit, automated conveyor movement and warehouse stacking.
Injection-moulded from food-grade, UV-stabilised polypropylene and high-density polyethylene, this crate nests tightly when empty to save floor space and stacks securely when loaded for stable multi-level handling. Available in Blue, Grey, Customization Available, it suits automotive components, agricultural produce, retail distribution and busy shopfloor material movement.
