Heavy-duty storage & distribution crate
Plastic CratesPT0011Compact crate for shopfloor & retail
PT0011 / Plastic Crates
540×360 General-Purpose Crate
Compact crate for shopfloor & retail
Versatile 540×360 crate with a reinforced base. Lightweight yet impact-resistant, it nests tightly when empty and stacks securely when full for space-efficient cycles.
540 × 360 × 205 mmCompact crate for shopfloor & retailPlastic Crates
Technical Specifications
Full Injection Moulding Specifications.
Approved dimensions and load ratings for engineering, purchasing and inspection reference.
- Product Code
- PT0011
- Outer Dimensions (OD)
- 540 × 360 × 205 mm
- Inner Dimensions (ID)
- 505 × 325 × 195 mm
- Versions / Base
- SSP / RB
- Colour Options
- Blue, Grey, Customization Available
- Material Grade
- Food-contact grade PP / HDPE
- Operating Temperature
- -20°C to +65°C continuous service
- Nesting
- Nests when empty · stacks when loaded
- Compliance
- FDA 21 CFR 177 · fully recyclable
Dimensions shown are nominal external (OD) and internal (ID) measurements taken from production tooling. Nesting and stacking performance assumes loaded crates of equal geometry are stacked squarely; wet or dust-laden duty suits the ribbed-base (RB) and solid (SCH/FB) variants.
Key Features & Benefits
Injection Moulded Plastic Components — Built for Continuous Operation.
Explore the material, handling and performance features of 540×360 General-Purpose Crate.
- 01Reinforced ribbed base construction
- 02Ergonomic side hand-grips
- 03Tight nesting when empty
- 04Secure stacking when in use
- 05Food-grade, UV-resistant material
- Single-piece injection moulding with rib-reinforced base
- Nesting and stacking geometry verified on production tooling
- Food-contact grade PP/HDPE compliant with FDA 21 CFR 177
- Impact and chemical resistance tested under shopfloor use
- UV-stabilised compound; fully recyclable at end of life
About the Product
About 540×360 General-Purpose Crate — Injection Moulded Plastic Components.

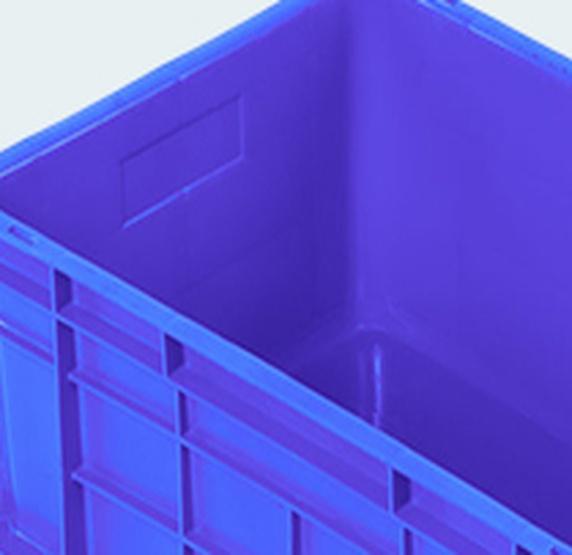

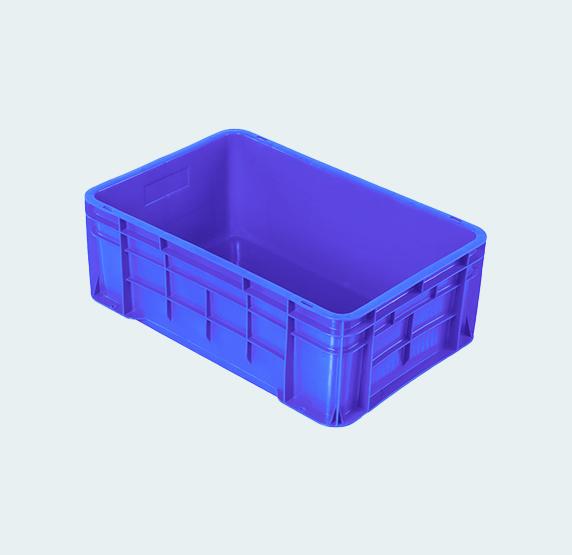

540×360 General-Purpose Crate (PT0011) is a 540 × 360 × 205 mm plastic storage and distribution crate with a usable inner cavity of 505 × 325 × 195 mm, supplied in the SSP / RB configuration. Reinforced ribbed construction and an impact-resistant polymer body protect contents through picking, transit, automated conveyor movement and warehouse stacking.

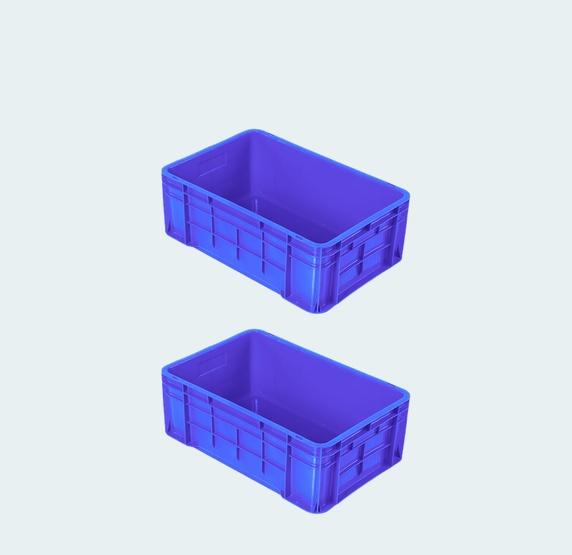

Injection-moulded from food-grade, UV-stabilised polypropylene and high-density polyethylene, this crate nests tightly when empty to save floor space and stacks securely when loaded for stable multi-level handling. Available in Blue, Grey, Customization Available, it suits automotive components, agricultural produce, retail distribution and busy shopfloor material movement.
Project Review
Discuss Your Plastic Crat Requirement.
Share your target volumes, operating environment and drawings. Our team as a plastic injection moulding company will confirm tooling, cycle times and a formal quotation for 540×360 General-Purpose Crate.
